Cable Options

Military Assemblies 400 Hz Single Jacket
With Replaceable Durable Hard Nose Contact Section

  • Neoprene Molded Plugs - Double Belted Neoprene Jacket
  • UL Listed Cable
  • Temperature Rating Inner Conductors +125C(+257F) -65C(-85F)
  • Temperature Rating Overall Cable +105C(+221F) -40C(-40F)
  • Resistant to Abrasion, Aircraft Fuel, Ozone, Oil, Sunlight, & Water

Get A Quote

Airport Ground Support Cables PDF Catalog


Product Specifications

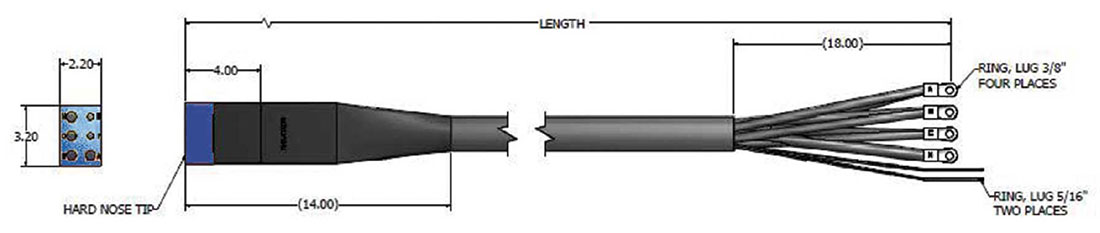

military-assemblies-400-hz-single-jacket-180-Amps

Blue Nose:
Overheat and Neutral Break Protection - Add Code: -BHNP
With On/Off Switch Module - Add Code: -1S
With Up/Down Motion Switch Module - Add Code: -2S
With On/Off and Up/Down Motion Switch Modules - Add Code: -3S
With OFF/LED power “ON” module. - Add Code: -4S
With OFF/LED power “ON” and Up/Down Motion switch modules - Add Code: -5S

PHILATRON
PART NO.		 LENGTH
FEET		 LENGTH
METERS		 TYPE
DESIGNATION		 APPROX.
WT.		 CABLE
CONFIGURATION
M6R-1020J 20 6.10 180 AMPS
6-5 AWG
1-2 AWG
12-18 AWG CONTROL CONDUCTORS
SILVER PLATED CONTACTS		 43 six arround one cable assemblies
split phase cable configuration
M6R-1030J 30 9.14 60
M6R-1040J 40 12.19 77
M6R-1060J 60 18.29 112
M6RS-1020J 20 6.10 180 AMPS
6-5 AWG
1-2 AWG
E AND F SHUNTED IN PLUG
SILVER PLATED CONTACTS		 42 six arround one cable assemblies
split phase cable configuration
M6RS-1030J 30 9.14 58
M6RS-1040J 40 12.19 75
M6RS-1060J 60 18.29 108

Replaceable Contact Section Part Number ACR-3430
