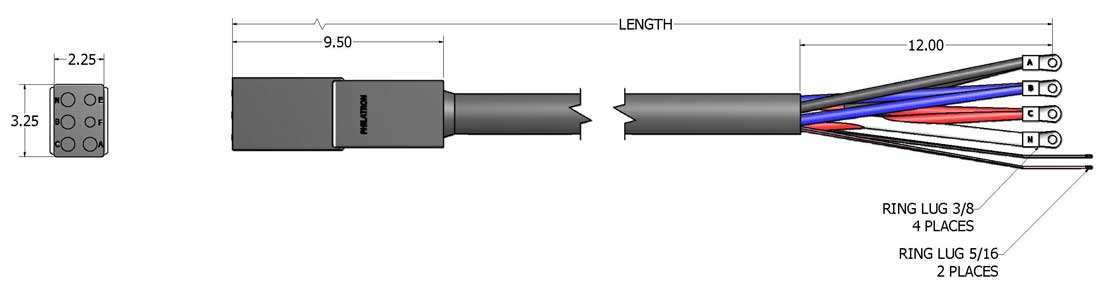

400 Hz Single Jacket No Replaceable Contact Section
Click Here for a Custom Cord / Cable Design Quote.
- Neoprene Molded Plugs - Double Belted Neoprene Jacket
- UL Listed Cable
- Temperature Rating Inner Conductors +125C(+257F) -65C(-85F)
- Temperature Rating Overall Cable +105C(+221F) -40C(-40F)
- Resistant to Abrasion, Aircraft Fuel, Ozone, Oil, Sunlight, & Water
Airport Ground Support Cables PDF Catalog
Product Specifications
| PHILATRON PART NO. |
LENGTH FEET |
LENGTH METERS |
TYPE DESIGNATION |
APROX WT/LBS |
CABLE CONFIGURATION |
| AC6-1020J | 20 | 6.10 | 260 AMPS 6-4 AWG 1-1 AWG 18-18 AWG CONTROL CONDUCTORS SILVER PLATED CONTACTS |
43 |
|
| AC6-1030J | 30 | 9.14 | 60 | ||
| AC6-1040J | 40 | 12.19 | 77 | ||
| AC6-1060J | 60 | 18.29 | 112 | ||
| AC6-10100J | 100 | 30.48 | 215 | ||
| AC6-2020J | 20 | 6.10 | 300 AMPS 6-2 AWG 1-1 AWG 18-18 AWG CONTROL CONDUCTORS SILVER PLATED CONTACTS |
56 | |
| AC6-2030J | 30 | 9.14 | 80 | ||
| AC6-2040J | 40 | 12.19 | 104 | ||
| AC6-2060J | 60 | 18.29 | 153 | ||
| AC6-20100J | 100 | 30.48 | 280 | ||
| AC6S-1020J | 20 | 6.10 | 260 AMPS 6-4 AWG 1-1 AWG E AND F SHUNTED IN PLUG SILVER PLATED CONTACTS |
42 |  |
| AC6S-1030J | 30 | 9.14 | 58 | ||
| AC6S-1040J | 40 | 12.19 | 75 | ||
| AC6S-1060J | 60 | 18.29 | 108 | ||
| AC6S-10100J | 100 | 30.48 | 210 | ||
| AC6S-2020J | 20 | 6.10 | 300 AMPS 6-2 AWG 1-1/0 AWG E AND F SHUNTED IN PLUG SILVER PLATED CONTACTS |
55 | |
| AC6S-2030J | 30 | 9.14 | 79 | ||
| AC6S-2040J | 40 | 12.19 | 102 | ||
| AC6S-2060J | 60 | 18.29 | 149 | ||
| AC6S-20100J | 100 | 30.48 | 280 |
Scuff Guard Available Upon Request
