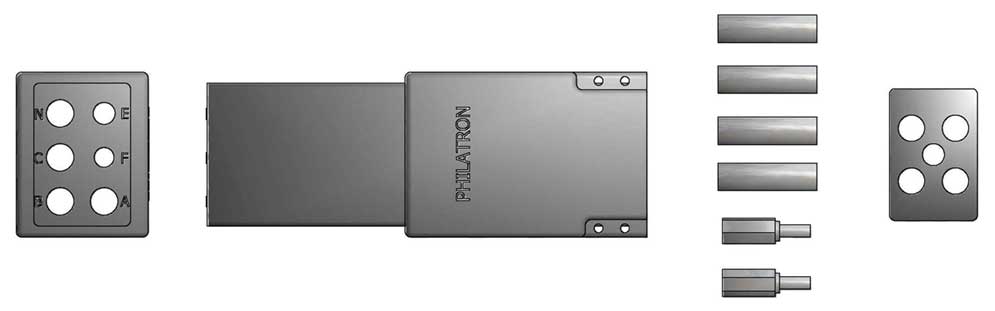

Field Replaceable Neoprene Plug


Click Here for a Custom Cord / Cable Design Quote.

  • 400 Hz AC Output
  • Integrally Neoprene Molded Plugs
  • Includes Hardware and Shrink Tubing

Airport Ground Support Cables PDF Catalog


Product Specifications

aviation ground support assemblies replaceable neopreme plug
PHILATRON
PART NO.
TYPE
DESIGNATION
MILITARY
PART NO.
APPROX.
WT./LBS
AC4-A10 4-1/0 AWG SINGLE CONDUCTORS
NO CONTROL LEADS
MS25486-16 8 lbs.
AC4-A20 4-2/0 AWG SINGLE CONDUCTORS
NO CONTROL LEADS
MS25486-17 8 lbs.
AC4-A10C 4-1/0 AWG SINGLE CONDUCTORS
AND CONTROL LEADS
MS25486-30 8 lbs.
AC4-A20C 4-2/0 AWG SINGLE CONDUCTORS
AND CONTROL LEADS
MS25486-31 8 lbs.
AC6-A10C 1/0 AWG SPLIT PHASE SINGLE JACKET
AND CONTROL LEADS
8 lbs.
AC6-A20C 2/0 AWG SPLIT PHASE SINGLE JACKET
AND CONTROL LEADS
8 lbs.
AC3-A10C 1/0 AWG SPLIT NEUTRAL SINGLE JACKET
AND CONTROL LEADS
8 lbs.
AC3-A20C 2/0 AWG SPLIT NEUTRAL SINGLE JACKET
AND CONTROL LEADS
8 lbs.
