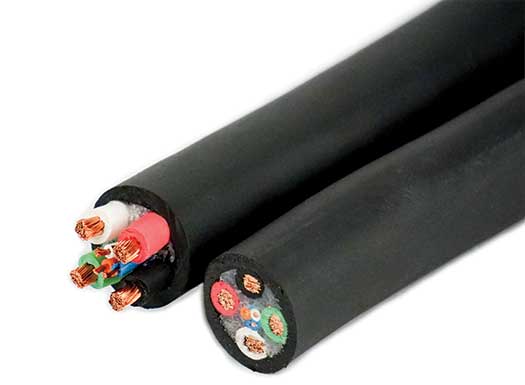

Submersible Pump Cable
PHILAFLEX™ 600 Volts Power Submersible Pump Cable UL Listed 105ºC Dry / 75ºC Wet to -40°C
Click Here for a Custom Cord/Cable Design Quote.
Application:
Power and circuits for submersible pump systems. Our submersible cable is suitable for direct burial and within well castings for wiring deep submersible water pumps.
Features:
PHILAFLEX™ UL rated 105ºC dry / 75ºC wet to - 40ºC
Standards:
UL 83, ASTM B3, and ASTM B8
Branding:
PHILAFLEX SUBMERSIBLE PUMP CABLE, (THW-2) Number & Size of Conductors, Direct Burial, Oil and Water Resistant, 105ºC dry /75ºC wet to -40°C 600V (UL) E128448
Jacket Color:
Black. Other colors available upon request.
Conductor Colors:
3/Conductors – Black, Yellow, & Red. Ground/Conductor – Green.
Round construction with no ground
| Part Number | Gauge/ MCM Size | Number of Conductors | Bare Copper Stranding | Cable O.D. (") | Weight - Lbs./1,000 feet |
Ampacity* |
| SR0143 | 14 | 3 | 7 x 22 Ga. | 0.406 | 106 | 15 |
| SR0123 | 12 | 3 | 19 x 25 Ga. | 0.449 | 131 | 20 |
| SR0103 | 10 | 3 | 19 x 23 Ga. | 0.501 | 186 | 32 |
| SR0083 | 8 | 3 | 19 x .0285 | 0.615 | 277 | 55 |
| SR0063 | 6 | 3 | 49 x .0231 | 0.865 | 496 | 75 |
| SR0043 | 4 | 3 | 49 x .0292 | 0.984 | 699 | 100 |
| SR0023 | 2 | 3 | 49 x .0368 | 1.132 | 1,007 | 125 |
| SR0013 | 1 | 3 | 49 x .0413 | 1.315 | 1,298 | 150 |
| SR1003 | 1/0 | 3 | 133 x .0282 | 1.414 | 1,549 | 175 |
| SR2003 | 2/0 | 3 | 133 x .0316 | 1.523 | 1,867 | 200 |
| SR3003 | 3/0 | 3 | 133 x .0355 | 1.652 | 2,303 | 225 |
| SR4003 | 4/0 | 3 | 133 x .0399 | 1.852 | 2,894 | 250 |
| SR2503 | 250 MCM | 3 | 133 x .0433 | 2.026 | 3,442 | 300 |
| SR3503 | 350 MCM | 3 | 133 x .0512 | 2.28 | 4,594 | 350 |
| SR5003 | 500 MCM | 3 | 133 x .0613 | 2.607 | 6,296 | 400 |
Round construction extra flexible (K class -30ga stranding) with ground
| Part Number | Gauge/ MCM Size | Number of Conductors | Bare Copper Stranding | Cable O.D. (") | Weight - Lbs./1,000 feet |
Ampacity* |
| SRF1003 | 1/0 | 3 + 6 Gauge Ground | 1,064 x 30 Ga. | 1.633 | 1,764 | 175 |
| SRF2003 | 2/0 | 3 + 6 Gauge Ground | 1,323 x 30 Ga. | 1.698 | 2,069 | 200 |
*Ampacity ratings are based on copper conductor temperature at 105ºC and ambient temperature at 40ºC.
(“) = inches Ga. = Gauge
