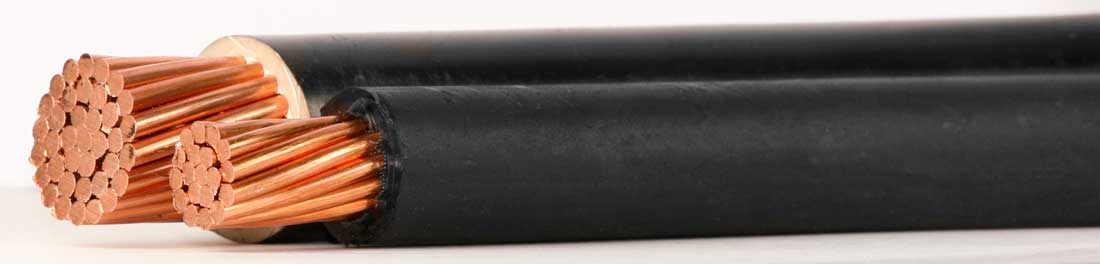

Airport Lighting Cables (ALC)
Click Here for a Custom Cord / Cable Design Quote.
Philatron Wire and Cable manufactures custom airport lighting cables that comply with FAA Advisory Circuit 150/5345-47B. The temperature rating for this cable, wet or dry, is 90º C (+194ºF) -65ºC (-85ºF). Philatron’s cross-linked cable construction is cross-linked polyethylene insulation and is manufactured in capacities ranging from 600 volts up to 5,000 volts.
Multi-Conductors and Custom Design Available Upon Request
- FAA-L-824 Type C
- Cross Linked Polyethylene Insulation
- +90ºC (+194ºF) -65ºC (-85ºF) – Wet or Dry
- Complies with FAA Advisory Circular 150/5345-47B
Airport Lighting Cables ALC
Airport Ground Support Cables PDF Catalog
600 / 1000 Volts – ICEA S-95-658 NEMA WC70
| Part Number | Size | Stranding | Insulation WallInches | Diameter Inches | Weight/Lbs Per 1000 |
| ALC-1KV-12 | 12 | 7 | .060 | .215 | 35 |
| ALC-1KV-10 | 10 | 7 | .060 | .240 | 50 |
| ALC-1KV-08 | 8 | 7 | .060 | .270 | 70 |
| ALC-1KV-06 | 6 | 7 | .060 | .305 | 105 |
| ALC-1KV-04 | 4 | 7 | .060 | .355 | 155 |
5000 Volts – ICEA S-96-659 NEMA WC71 (Copper Conductors Covered With Semi-Conducting Material)
| Part Number | SizeAWG | Stranding | Insulation Wall Inches | Diameter Inches | Weight/Lbs |
| ALC-5KV-08 | 8 | 7 | .110 | .380 | 89 |
| ALC-5KV-06 | 6 | 7 | .110 | .429 | 125 |
| ALC-5KV-04 | 4 | 7 | .110 | .460 | 180 |
