Cable Options
Banded 400 Hz- AC Output - 600 Volts
No Replaceable Contact Section
Click Here for a Custom Cord / Cable Design Quote.

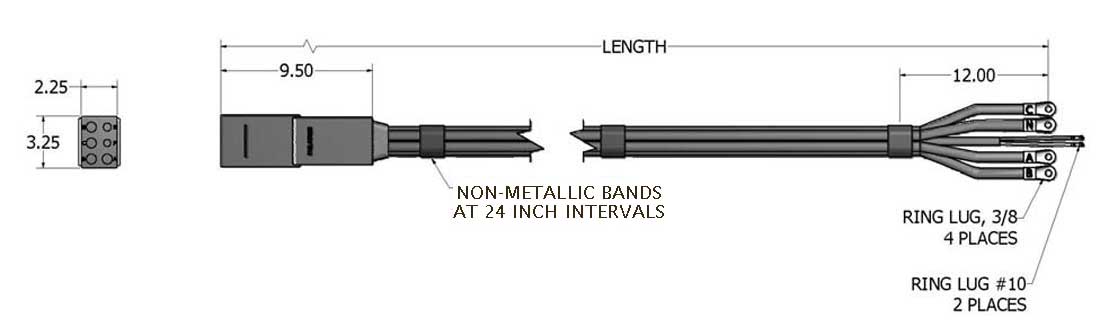

4 Conductors With Bands – 2 Control Leads
- Neoprene Molded Plug
- Temperature Rating - +105C (221F) -40C (-40F)
- Resistant to Abrasion, Aircraft Fuel, Ozone, Oil, Sunlight, & Water
Airport Ground Support Cables PDF Catalog
Product Specifications
| Philatron Part No. |
Length Feet |
Length Meters |
Type Designation |
Military Part No. |
Approx WT/LBS |
Cable Configuration |
| AC4-1020C | 20 | 6.1 | 4-1/0 AWG 1-2/12 AWG CONTROL LEADS SILVER PLATED CONTACTS NON-METALLIC BANDS |
MS90328-25M | 45 |   |
| AC4-1030C | 30 | 9.14 | MS90328-26M | 56 | ||
| AC4-1040C | 40 | 12.19 | MS90328-27M | 75 | ||
| AC4-1060C | 60 | 18.29 | MS90328-28M | 112 | ||
| AC4-10100C | 100 | 30.48 | 225 | |||
| AC4-2020C | 20 | 6.1 | 4-2/0 AWG 1-2/12 AWG CONTROL LEADS SILVER PLATED CONTACTS NON-METALLIC BANDS |
MS90328-31M | 53 | |
| AC4-2030C | 30 | 9.14 | MS90328-32M | 76 | ||
| AC4-2040C | 40 | 12.19 | MS90328-33M | 98 | ||
| AC4-2060C | 60 | 18.29 | MS90328-34M | 143 | ||
| AC4-20100C | 100 | 30.48 | 265 | |||
| AC4S-1020C | 20 | 6.1 | 4-1/0 AWG 1-2/12 AWG CONTROL LEADS E AND F SHUNTED IN PLUG SILVER PLATED CONTACTS NON-METALLIC BANDS |
45 |  |
|
| AC4S-1030C | 30 | 9.14 | 56 | |||
| AC4S-1040C | 40 | 12.19 | 75 | |||
| AC4S-1060C | 60 | 18.29 | 112 | |||
| AC4S-1020C | 100 | 30.48 | 225 | |||
| AC4S-2020C | 20 | 6.1 | 4-2/0 AWG 1-2/12 AWG CONTROL LEADS E AND F SHUNTED IN PLUG SILVER PLATED CONTACTS NON-METALLIC BANDS |
53 | ||
| AC4S-2030C | 30 | 9.14 | 76 | |||
| AC4S-2040C | 40 | 12.19 | 98 | |||
| AC4S-2060C | 60 | 18.29 | 143 | |||
| AC4S-20100C | 100 | 30.48 | 265 |
