Cable Options

400 Hz Single Jacket - Split Neutral No Replaceable Contact Section

  • Neoprene Molded Plugs - Double Belted Neoprene Jacket
  • UL Listed Cable
  • Temperature Rating Inner Conductors +125C(+257F) -65C(-85F)
  • Temperature Rating Overall Cable +105C(+221F) -40C(-40F)
  • Resistant to Abrasion, Aircraft Fuel, Ozone, Oil, Sunlight, & Water

Get A Quote

Airport Ground Support Cables PDF Catalog

Product Specifications

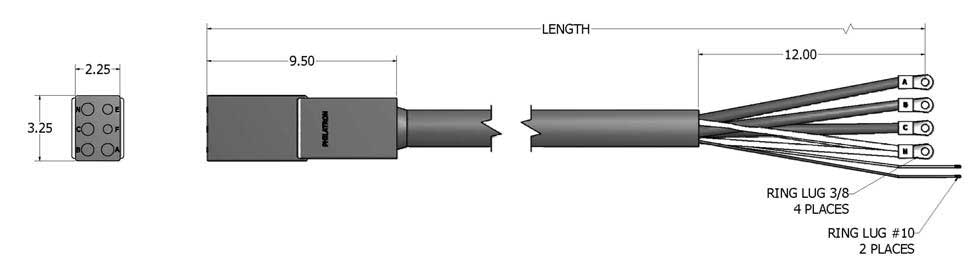

aviation ground support cable split neutral
PHILATRON
PART NO.		 LENGTH
FEET		 LENHTH
METERS		 TYPE
DESIGNATION		 APPROX
WT/LBS		 CABLE
CONFIGURATION
AC3-1020J 20 6.10 3-1/0 AWG
3-6 AWG
2-12 AWG SINGLE CONDUCTORS
SILVER PLATED CONTACTS		 50 Aircraft-Cable---SPLIT-NEUTRAL
cable configuration aviation ground support cables split neutral
AC3-1030J 30 9.14 71
AC3-1040J 40 12.19 91
AC3-1060J 60 18.29 133
AC3-10100J 100 30.48 250
AC3-2020J 20 6.10 3-2/0 AWG
3-4 AWG
2-12 AWG SINGLE CONDUCTORS
SILVER PLATED CONTACTS		 60
AC3-2030J 30 9.14 85
AC3-2040J 40 12.19 11
AC3-2060J 60 18.29 163
AC3-20100J 100 30.48 300
AC3S-1020J 20 6.10 3-1/0 AWG
3-6 AWG
E AND F SHUNTED IN PLUG
SILVER PLATED CONTACTS		 48 Aircraft-Cable---SPLIT-NEUTRAL
cable configuration aviation ground support cables split neutral
AC3S-1030J 30 9.14 68
AC3S-1040J 40 12.19 88
AC3S-1060J 60 18.29 128
AC3S-10100J 100 30.48 240
AC3S-2020J 20 6.10 3-2/0 AWG SINGLE CONDUCTORS
3-4 AWG SINGLE CONDUCTORS
E AND F SHUNTED IN PLUG
SILVER PLATED COPPER CONTACTS		 58
AC3S-2030J 30 9.14 83
AC3S-2040J 40 12.19 107
AC3S-2060J 60 18.29 157
AC3S-20100J 100 30.48 290

Scuff Guard Available Upon Request
