There is a better Choice
Toxins are released into our air from burning wire.
Out with the old!
Because wire and cable is often tucked out of sight, it is easy to ignore the sheer volume of its application in our lives. Yet this volume is what makes the disposal and recycling of wire and cable such an increasingly pressing environmental issue.
Ecologically minded consumers and government bodies have put increasing pressure on wire and cable assembly manufacturers to phase out toxic wire coatings that can release toxins during incineration. Many materials such as TR-XLPE and EPR resins cannot be recycled at all.
Yet the industry continues to use un-cycle able TR-XLPE and EPR, because most alternatives lack TR-XLPE and EPR performance. Clearly, the status quo needs to change.
Philatron offers a new innovative solution for medium voltage cables:
Advanced technology has expanded opportunities for developing a new bred of eco-friendly medium voltage cables.
In with the new!
Philatron offers a new innovative solution:
Advanced technology has expanded opportunities for
developing a new bred of medium voltage cables.
The increasing emphasis on environmental concerns - such as recyclability has led Philatron to seek innovative solutions.
Philatron’s new Philatron-EF™ Environmental Friendly Power Cables are made with a special proprietary blend of recycleable thermoplastics which out performs TR-XLPE ( tree-retardant cross-linked polyethylene) and EPR (ethylene propylene rubber).
Philatron’s Philatron-EF™ cable has a higher dielectric strength value of 38 compared to the TR-XLPE dielectric strength value of 30. The High-Voltage Tracking Resistance (HVTR) of Philatron-EF™ cable’s insulation material is zero - giving the benefit of zero arc rupture exposures.
Philatron-EF™ cables are toxic free and are well suited for recyclability - unlike TRXLPE and EPR insulated power cables.
A better Choice Introducing...
Philatron EF™
Environmental Friendly
Medium Voltage Cables

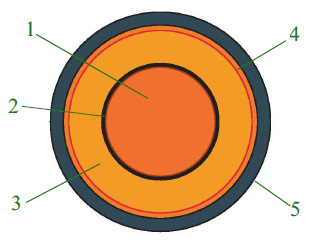

1. Soft Anneal Copper Conductor.
2. Conductive Screen.
3. High Di-electric Strength Thermoplastic Elastomer Olefin Rubber.
Temperature Rating: +105°C to -70°C.
Resistant to Abrasion, Chemicals, Ozone, Oil, Sunlight, Water, and Electrical
Arc Rupture.
Environmental Friendly - Contains No Toxins.
4. Copper Tape Shield.
5. Philatron™ Thermoplastic Vulcanizate (cross linked) Olefin Rubber.
Temperature Rating: +125°C to -65°C.
Resistant to Abrasion, Chemicals, Flame (MSHA Certified), Ozone, Oil, Sunlight,
and Water.
Philatron EF™
Environmental Friendly
Non-Shielded Medium Voltage Cables
1. Soft Anneal Copper Conductor.
2. Conductive Screen.
3. High Di-electric Strength Thermoplastic Elastomer Olefin Rubber. Temperature Rating: +105°C to -70°C.
Resistant to Abrasion, Chemicals, Ozone, Oil, Sunlight, Water, and Electrical Arc Rupture.
Environmentally Friendly - Contains No Toxins.
4. Thermoplastic Vulcanizate (cross linked) Olefin Rubber. Temperature Rating: +125°C to -65°C.
Resistant to Abrasion, Chemicals, Flame (MSHA Certified), Ozone, Oil, Sunlight, Water and Discharge.
Non-Shielded MV Cable Test Report Available Upon Request
In today’s world of global activities, applications of cables in any climate in the world is critical to the integrity of your electrical systems. If the cable fails your system fails. The cable assembly you install to power your systems must be capable of withstanding environmental abuses of abrasion, heat, cold petroleum chemicals, and harsh handling.
Philatron™ cables are designed to meet the challenges of your system anywhere in the world. Philatron™ cables gives you excellent flexibility and superior operating temperature ranges from +125°C to -65°C.
Philatron™ value-to-cost ratio is very high. Philatron™ cables are intended for users who requires maximum dependability with minimum replacement and down-time expenses.
