Cable Options
Banded 400 Hz -No Replaceable Contact Section
Click Here for a Custom Cord / Cable Design Quote.
4 Conductors With Bands – No Control Leads
Neoprene Molded Plug
- Temperature Rating - +105°C (221°F) -40°C (-40°F)
- Resistant to Abrasion, Aircraft Fuel, Ozone, Oil, Sunlight, & Water
Airport Ground Support Cables PDF Catalog

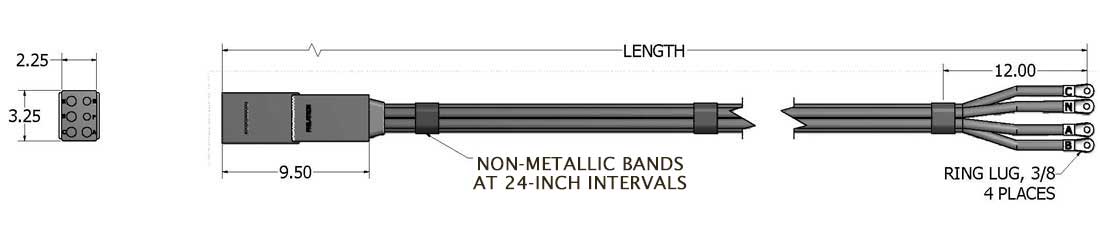

Cable Configuration
| PHILATRON PART NO. |
LENGTH FEET |
LENGTH METERS |
TYPE DESIGNATION |
MILITARY PART NO. |
APPROX. WT./LBS. |
CABLE CONFIGURATION |
| AC4-1020 | 20 | 6.10 | 4-1/0 AWG NO CONTROL LEADS E AND F SHUNTED IN PLUG SILVER PLATED CONTACTS NON METALLIC BANDS |
MS90328-13M | 35 |
 |
| AC4-1030 | 30 | 9.14 | MS90328-14M | 53 | ||
| AC4-1040 | 40 | 12.19 | MS90328-15M | 71 | ||
| AC4-1060 | 60 | 18.29 | MS90328-16M | 106 | ||
| AC4-10100 | 100 | 30.48 | 175 | |||
| AC4-2020 | 20 | 6.10 | 4-2/0 AWG NO CONTROL LEADS E AND F SHUNTED IN PLUG SILVER PLATED CONTACTS NON METALLIC BANDS |
MS90328-19M | 51 | |
| AC4-2030 | 30 | 9.14 | MS90328-20M | 73 | ||
| AC4-2040 | 40 | 12.19 | MS90328-21M | 95 | ||
| AC4-2060 | 60 | 18.29 | MS90328-22M | 138 | ||
| AC4-20100 | 100 | 30.48 | 255 |
Scuff Guard Available Upon Request
