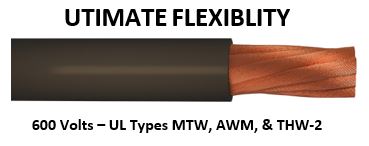

Philatron Data Center Power Cable
To get a custom design, click on "Get a Quote" in the menu bar. Then fill out the Custom Cable Design form.
Applications:
Data Centers, Flexible Building Wire (THW-2), Commercial, Airport Expansion, Power Generation, Switch Board Wire (MTW) Control Cabinets, & Industrial Installations for panel boards, switchboards, UPS systems, channels, ducts, wire ways, rated for indoor or outdoor cable trays, and raceways.
Download Detailed Specs for Philatron Data Center Power Cable Specifications (PDF)Features:
- ULTIMATE FLEXIBILITY - For easier and faster installation that saves time and labor burdened by stiff cables and tight bends Sizes 8 AWG to 1000 MCM
- Sunlight Resistant
- Oil Resistant
- Abrasion Resistant
- For wet or dry locations
- Permitted for direct Burial
- RoHs Compliant
- Made in the USA
- UL Listing # E98586
- UL Listing #E205997
- UL Listing #E211444
Construction:
- Soft annealed bare copper ASTM Class K - 30 AWG stranding for superior flexibility.
- Inners insulated with high dielectric strength +105C to -40C extra flexible PVC.
To specify color add # to end of part number: Black-1, White-2, Red-3, Green-4, Orange-5, Blue-6, and Yellow-7.
Example: To order 6 AWG Blue, the part number would be MTW6K-5.
| Part | Size | No. of | Wall Thickness " | Diameter | Ampacity | Weight |
| Number | (AWG) | Strands | Inches | Amps | Lbs./MFT | |
| MTW8K-# | 8 | 168 | 0.045 | 0.254 | 80 | 79 |
| MTW6K-# | 6 | 266 | 0.06 | 0.325 | 105 | 126 |
| MTW4K-# | 4 | 420 | 0.06 | 0.392 | 140 | 190 |
| MTW3K-# | 3 | 476 | 0.06 | 0.412 | 165 | 212 |
| MTW2K-# | 2 | 665 | 0.06 | 0.455 | 190 | 287 |
| MTW1K-# | 1 | 836 | 0.08 | 0.537 | 220 | 373 |
| MTW1/0-# | 1/0 | 1064 | 0.08 | 0.611 | 260 | 463 |
| MTW2/0-# | 2/0 | 1323 | 0.08 | 0.638 | 300 | 565 |
| MTW3/0-# | 3/0 | 1672 | 0.08 | 0.676 | 350 | 695 |
| MTW4/0-# | 4/0 | 2107 | 0.08 | 0.787 | 405 | 869 |
| MTW250-# | 250 MCM | 2499 | 0.095 | 0.872 | 455 | 1044 |
| MTW300-# | 300 MCM | 2989 | 0.095 | 0.958 | 500 | 1237 |
| MTW350-# | 350 MCM | 3458 | 0.095 | 1.016 | 570 | 1426 |
| MTW400-# | 400 MCM | 3990 | 0.095 | 1.068 | 615 | 1636 |
| MTW500-# | 500 MCM | 5054 | 0.095 | 1.178 | 700 | 2043 |
| MTW600-# | 600 MCM | 5985 | 0.11 | 1.345 | 780 | 2439 |
| MTW750-# | 750 MCM | 7581 | 0.11 | 1.496 | 885 | 3088 |
| MTW1000-# | 1000 MCM | 9975 | 0.11 | 1.62 | 1055 | 3954 |
Ampacity for single conductor is based on Ambient Temperature of 30°C (86°F) per NEC Table 310.15(B)(17). Refer to NEC 310.15(B)(2) for the Ampacity correction factors where the ambient temperature is other than 30°C (86°F). All dimensions and weights are nominal and approximate.
